(Steam Distribution Manifold System)

Technical Description

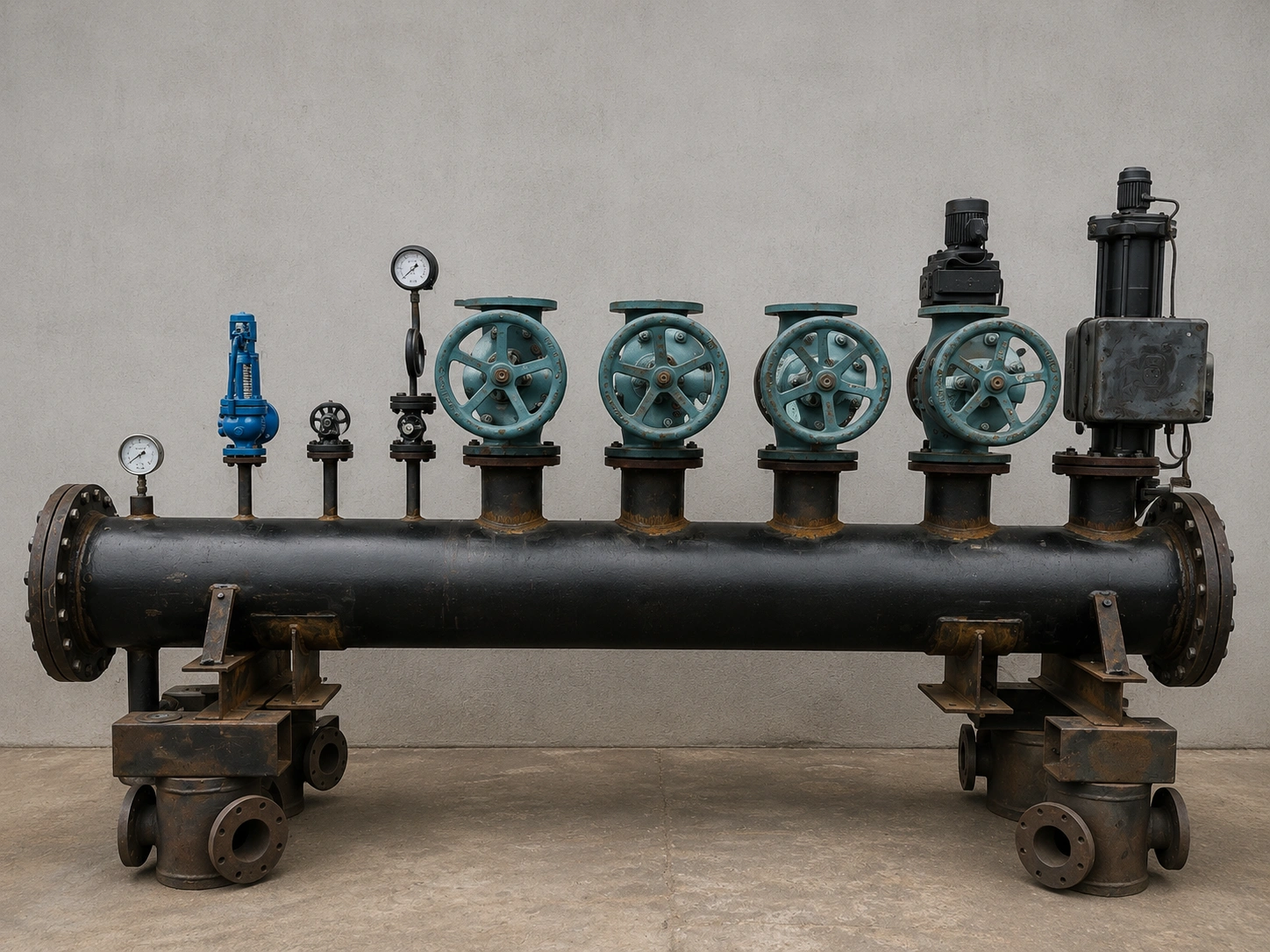

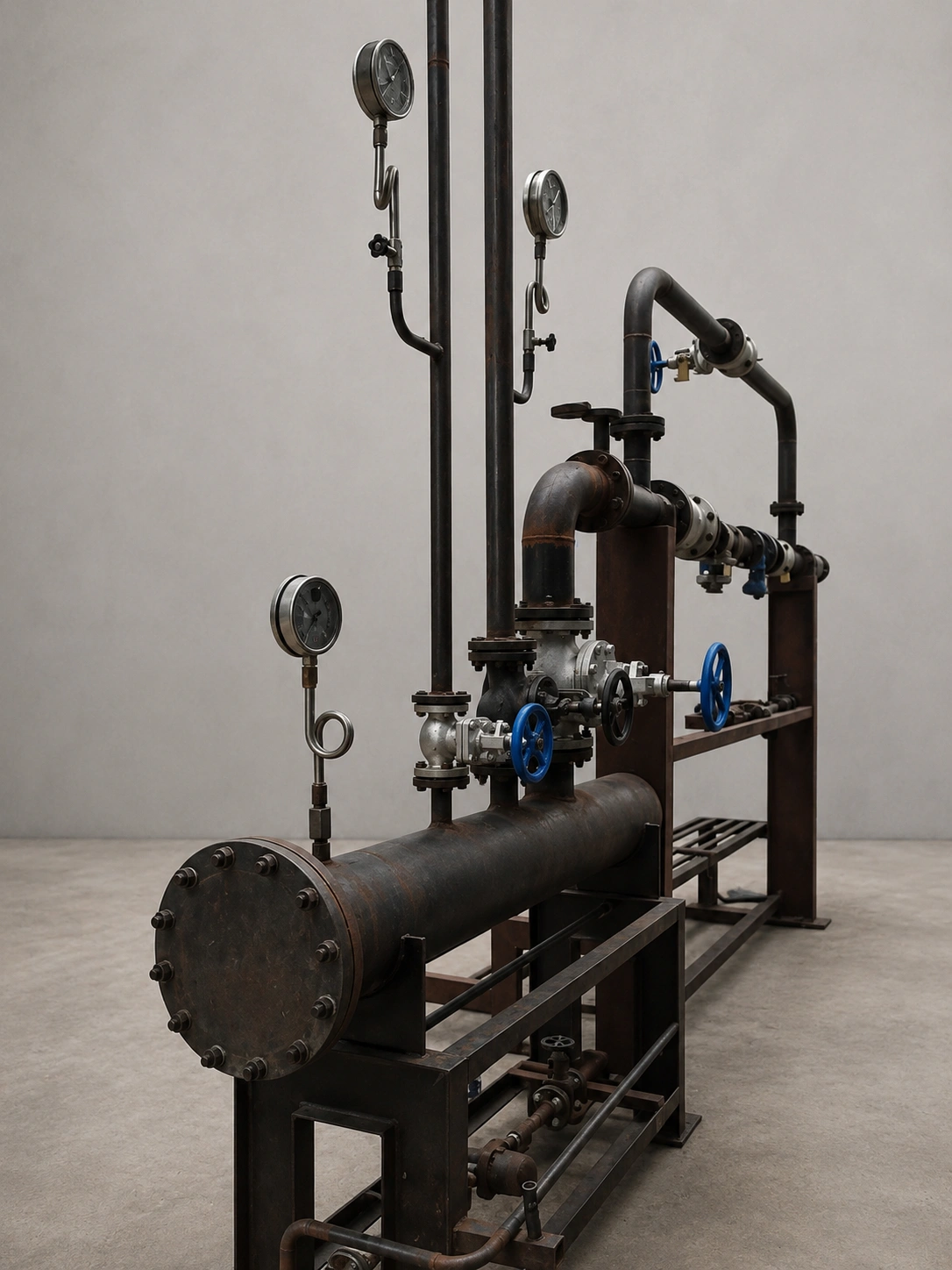

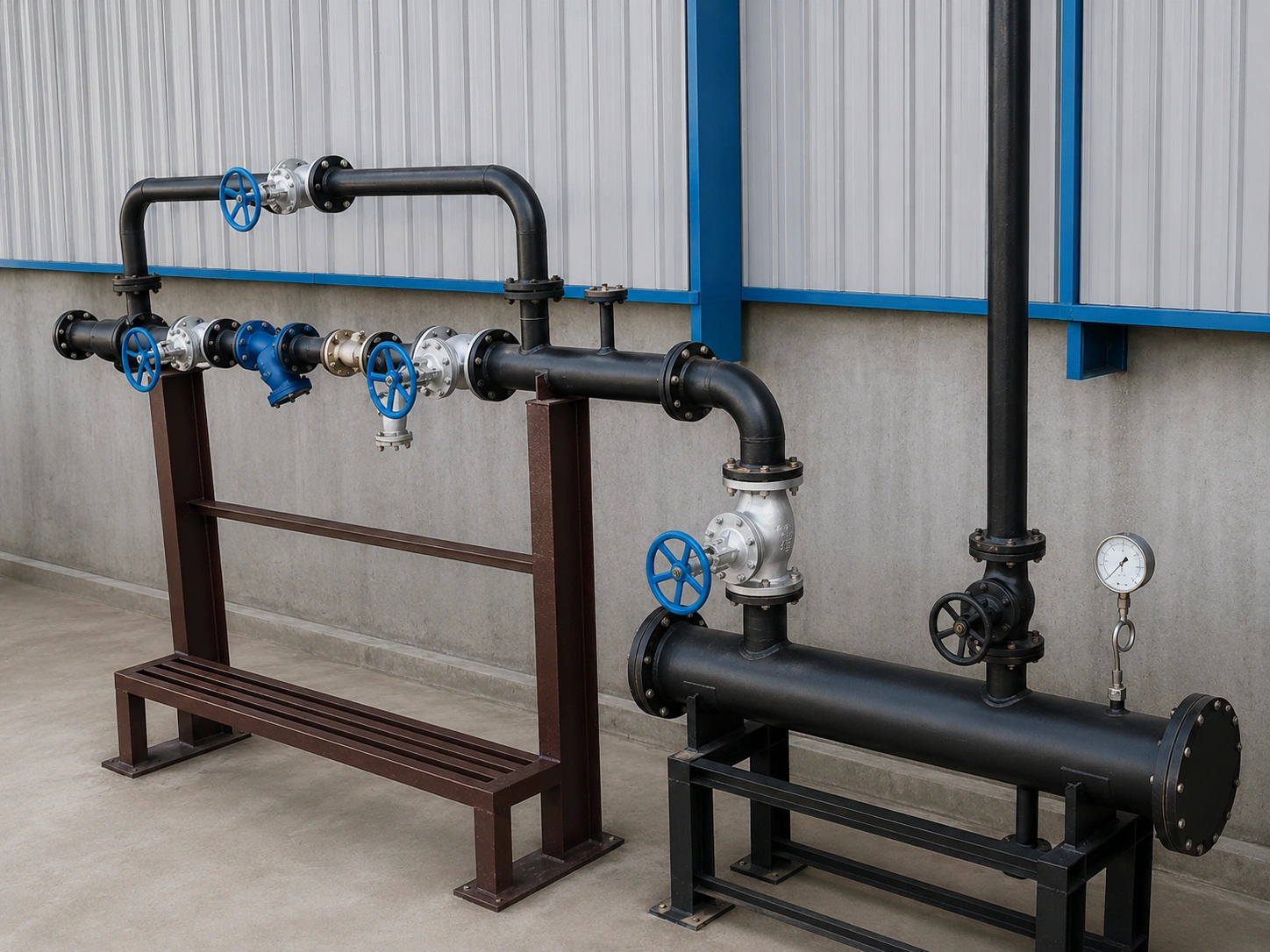

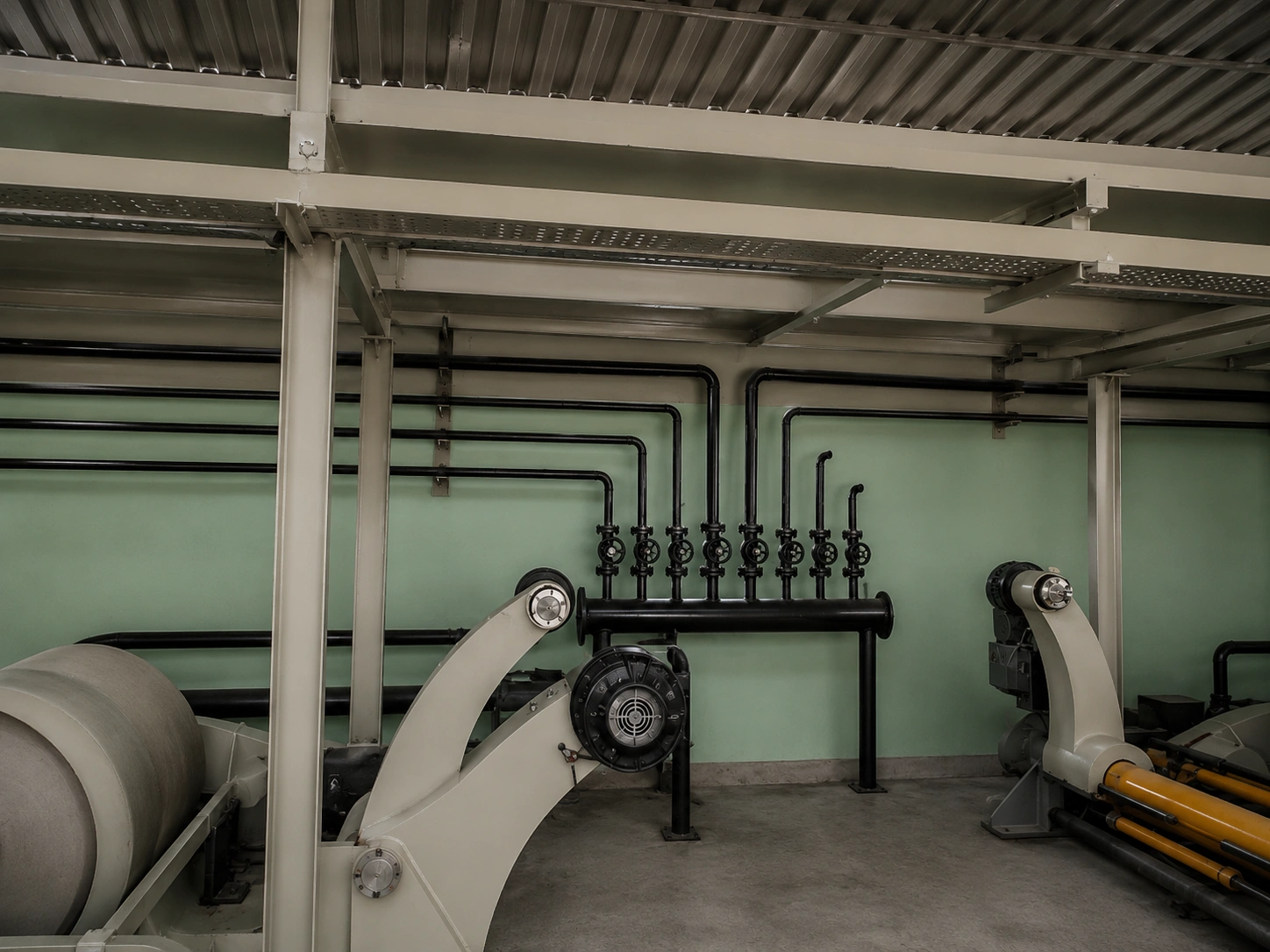

BELLFABS BOILERS Steam Headers are heavy-duty steam distribution systems designed to collect, distribute, and regulate steam flow from boilers to multiple process lines efficiently and safely. The steam header acts as a central manifold that receives steam from one or multiple boilers and distributes it uniformly to various plant applications while maintaining stable steam pressure and flow.

The system is engineered with robust piping construction, properly designed branch connections, drain arrangements, safety accessories, and insulation to ensure minimal pressure loss, reduced heat loss, and reliable continuous steam distribution. Steam Headers are suitable for saturated and superheated steam applications across industrial steam networks.

Designed for high-pressure and high-temperature operation, the steam header ensures safe steam handling, operational flexibility, and efficient steam management for industrial process applications.

Key Features

• Efficient steam distribution system
• Uniform steam flow to multiple process lines
• Heavy-duty pressure piping construction
• Reduced pressure and heat loss
• Multiple branch outlet arrangement
• Suitable for high-pressure steam applications
• Provision for drain and vent connections
• Insulated for thermal efficiency
• Rugged and durable industrial design
• Suitable for continuous operation

Advantages

• Centralized steam distribution management
• Improved steam flow stability
• Reduced steam pressure fluctuation
• Enhanced process control and efficiency
• Lower heat loss and energy wastage
• Easy expansion for additional process connections
• Reliable and safe steam handling
• Long operational life with robust construction
